ID # 67663778

2026 Argo R8 Integrator

Location:
Lake Country

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

AUTONOMOUSLY AWESOME.

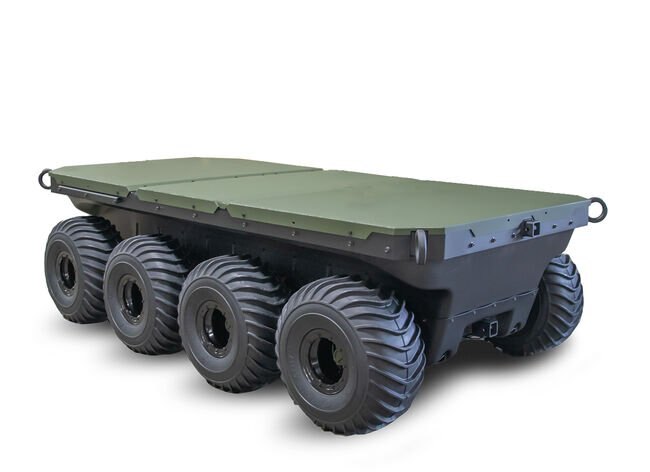

The ARGO R8 Integrator UGV platform is designed for the most demanding off-road, autonomous applications. Ready out of the box for your autonomy kit to interface with, the R8 features 8x8 skid steer traction, electric drive train, amphibious capabilities, and class-leading payload capacity; optional Lithium Ion battery capacity up to 25kWh for extended range missions. The R8 comes standard with integrated helicopter lift points to make transport into the toughest environments seamless.

Specifications

Model

Integrator

Category Name

UTV - Side x Side

Year

2026

Sale Type

New

Manufacturer

Argo

Color

green

Engine Size

HUBS

LOCKING/UNLOCKING

TRACTION

8x8 SKID STEER

ARGO TIRES

25" (63.5 cm)

DIMENSIONS

10 'x 5' x 3.5' (3.05m x 1.52m x 1.07m)

SIDE SLOPE

30% (17 DEGREES)

GVWR (LAND)

4,050 lb (1,814 kg)

GVWR (WATER)

2,500 lb (1,134 kg)

FORWARD SLOPE

60% (30 DEGREES)

VEHICLE WEIGHT

1,950 lb (885 kg)

BATTERY VOLTAGE

48V NOMINAL

MAX SPEED (LOW)

12.1 mph (19.5 km/h)

GROUND CLEARANCE

10" (25.4 cm)

MAX SPEED (HIGH)

15.5 mph (25 km/h)

STORAGE TEMPERATURE

-4 to 140 F (-20 to 60 C)

WATER FORDING DEPTH

2 ft (0.6 m)

TRACTION MOTOR POWER

32HP (24.04 (kW)

OPERATING TEMPERATURE

-4 to 122 F (-20 to 60 C)

STEER MOTOR CONTROLLER

CAN MESSAGING

TRACTION MOTOR CONTROLLER

CAN MESSAGING

CHARGING TEMPERATURE (AMBIENT)

32 to 122 F (0 to 50 C)

OPTIONAL 35 KWh BATTERY WEIGHT

525 lb (238.1 kg)

Province

British Columbia

features

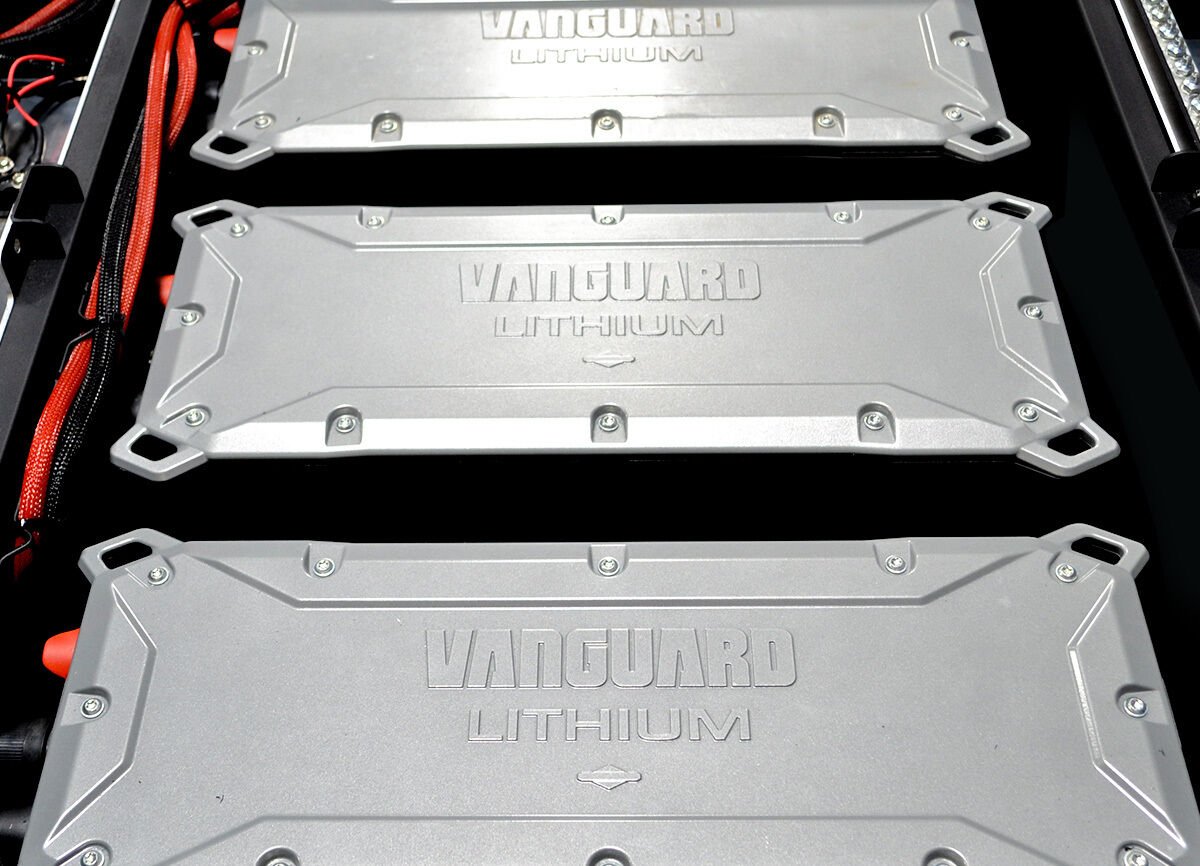

Electric Battery

The ARGO R8 Integrator UGV platform is designed for the most demanding off-road, autonomous applications. Ready out of the box for your autonomy kit to interface with, the R8 features 8x8 skid steer traction, electric drive train, amphibious capabilities, and class-leading payload capacity; optional Lithium Ion battery capacity up to 35kWh for extended range missions with a run time up to 7 hours.

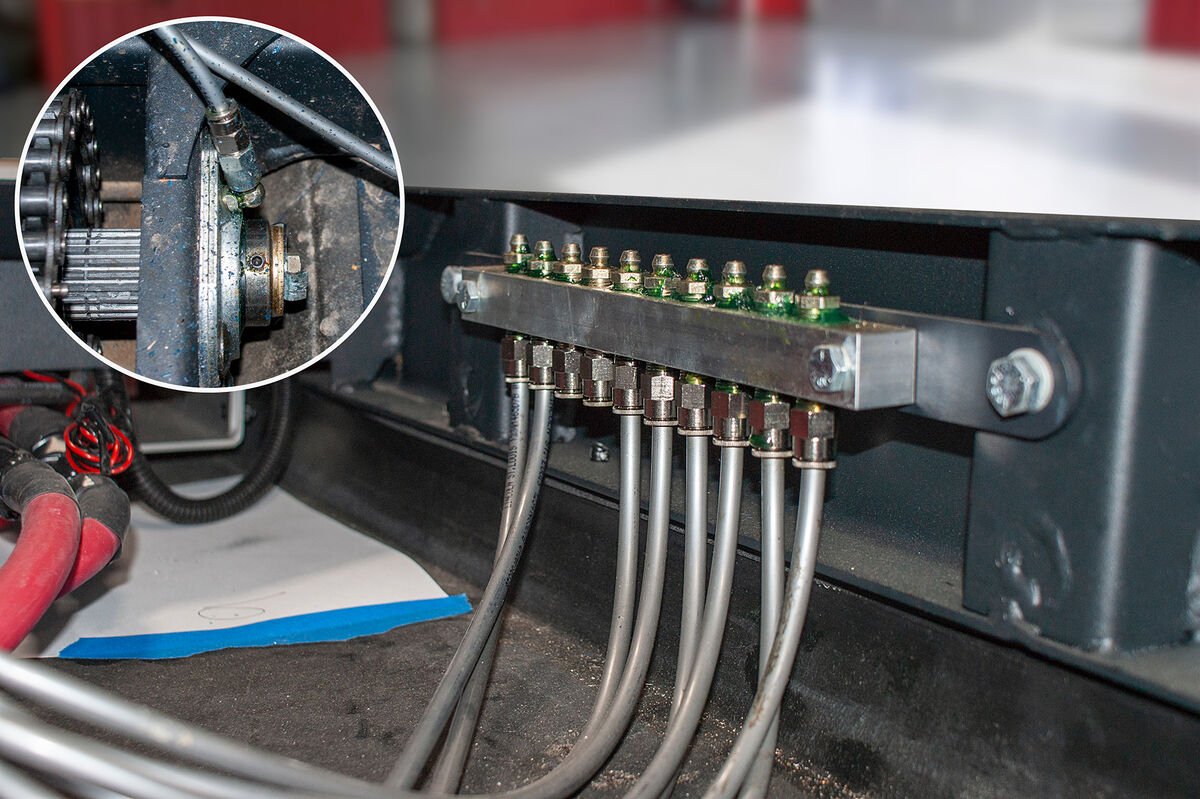

Grease Points

Grease points have been centralized for ease of access and chains are oil-impregnated, lowering the maintenance burden even further.

Payload Capacity

The R8 Integrator is designed with your payload in mind. The R8 Integrator platform has a flat top deck from front to back, giving you endless possibilities for mounting. With a capacity up to 2,100 lbs (929 kg) you can optimize your vehicle to any application.
